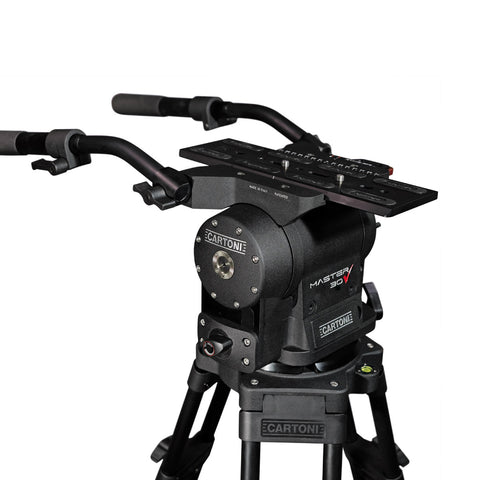

In Broadcast and Studio configuration the new CARTONI Master 30 head covers the needs of sophisticated video shooters from 3 kg (7 lbs) to 30 kg (66 lbs).
With a low center of gravity configuration such as with Teleprompter, Master 30 holds 40 kg (88 lbs).
An exceptional new fluid module in both pan and tilt modes ensures smooth movements, with perfect starts and stops, the drag system allows a wide variety from almost freewheeling in fast action movements to maximum resistance for perfect long focal shoots.
Counterbalance performs perfect balance at any angle from 0 to +/- 90 degrees.
All operating knobs and levers are conveniently located and easy to reach with a special care for ergonomics.
The head comes equipped with dual telescopic pan bars, illuminated spirit level and digital readouts for drag control and counterbalance settings.
| Minimum Payload Capacity | 3 kg 7 lbs |
| Maximum Payload Capacity | 30 kg 66 lbs |
| Weight | 10.5 kg 23.1 lbs |
| Bowl Diameter | Flat |
| Fluid Drag | Continuous |
| Counterbalance | Continuous |
| Pan Range | 360° |
| Tilt Range | +/-90° |
| Temperature Range | -40°/+60° |
